a temperature sensor made from two different metals
Beyond the definition
Imagine you're building an oven or need to measure the temperature inside a roaring furnace. This device can help. It's made of two different metals joined together at one end. When this junction gets hot and the other end stays cooler, it creates a tiny electrical voltage, and that voltage can be used to measure temperature.
Think of it like this: heat changes the electrical behavior of the metals, and because the two metals respond differently, they create a measurable signal. Scientists and engineers use thermocouples in many places, from ovens and furnaces to engines and factory equipment. It's a reliable way to measure very high temperatures in harsh places where ordinary thermometers may not work well.
A thermocouple is a temperature sensor commonly used in science and engineering, especially in extreme or demanding environments. It works through the Seebeck effect, a phenomenon discovered by Thomas Johann Seebeck in 1821. When two different electrical conductors are joined at a junction and there is a temperature difference between that junction and another part of the circuit, a small voltage is produced.
This voltage is small and is typically measured in millivolts. It is related to the temperature difference between the "hot junction" (the measuring point) and the "cold junction" (the reference point). By measuring this voltage and using calibration data, engineers can estimate the temperature of the hot junction.
Thermocouples come in various "types"—designated by letters like K, J, T, E, N, S, R, and B—each using different metal combinations to suit specific temperature ranges. For example, Type K thermocouples (Chromel-Alumel) are widely used for general-purpose measurements up to around 1,350°C, while Type B thermocouples (Platinum-Rhodium alloy) can measure even higher temperatures, exceeding 1,800°C.
You'll find thermocouples in a huge range of applications: industrial furnaces, power plants, jet engines, food processing, plastic molding, and even home appliances like gas ovens and water heaters. They are valued because they are tough, cover a wide temperature range, cost relatively little, and generate their own signal without needing outside power for the sensing action. So, when something very hot needs to be monitored, there's a good chance a tiny thermocouple is working behind the scenes.
Examples
- 1
Appliance repair
The technician replaced the thermocouple when the oven kept shutting off.
- 2
Temperature check

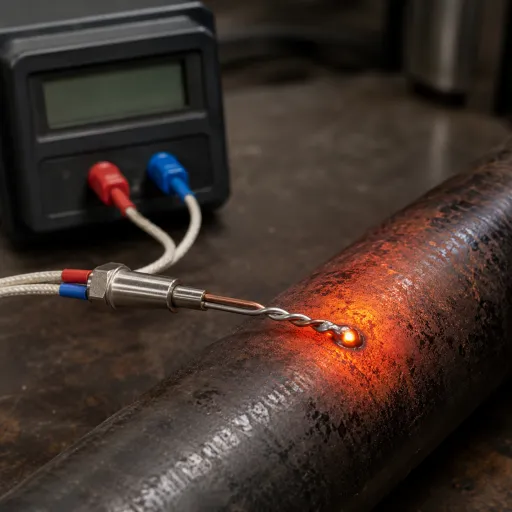

We attached a thermocouple to the pipe to check how hot the water was getting.
- 3
Furnace monitoring
The lab uses several thermocouples to monitor temperature at different points in the furnace.
See also
Similar
- temperature sensor
- thermoelectric thermometer
Shades of meaning
Contrast
- resistance temperature detector
- infrared thermometer
Do not confuse
- thermistor
Used with (collocations)
- thermocouple junction
- thermocouple probe
- type K thermocouple
- thermocouple output
Word family
- thermo-
Explore
- Seebeck effect
- thermopile
