photolithography

Imagine wanting to create tiny, detailed designs that are far smaller than the width of a human hair. That is where photolithography comes in. It is a way of using light and special chemicals to place patterns on a surface, and it is best known for helping make the microchips inside phones, computers, and many other digital devices. You can think of it as a very precise stencil process, but instead of paint, light is used to show exactly where material should stay or be removed.

The name comes from older printing methods: "photo" relates to light, and "lithography" comes from a kind of printing that originally used stone plates. Over time, this method became one of the main tools of modern microfabrication. It is not only used for chips, but also for small sensors, tiny mechanical parts, and some lab devices used in research. If you have ever wondered how so much computing power fits into such a small space, this light-based process is a big part of the answer.

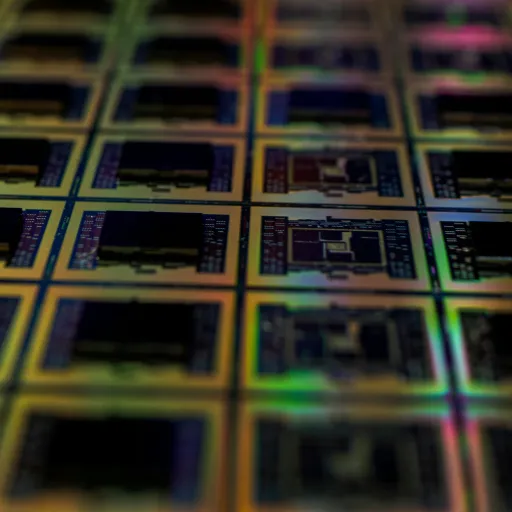

Photolithography is a specialized process used to transfer geometric patterns onto a surface, usually a silicon wafer, by using light. It is essential for making integrated circuits (microchips) and many other very small devices. The name reflects its roots: "photo" refers to light, while "lithography" comes from an older printing method that used stone or metal plates to transfer ink.

Here is how the modern process works. First, the surface is coated with a light-sensitive layer called a photoresist. Then a mask, which is basically a very precise stencil with the wanted pattern, is placed over it. The setup is exposed to ultraviolet (UV) light. Depending on the type of photoresist used, a chemical change takes place. With a positive resist, the exposed areas become easier to dissolve and are washed away. With a negative resist, the exposed areas harden, while the unexposed parts are removed. This leaves a careful pattern in the photoresist on the surface.

Next, etching methods using chemicals or plasma remove material from the areas not protected by the remaining photoresist, effectively carving the pattern into the layer below. Finally, the remaining photoresist is stripped away, leaving the desired microstructure behind.

While its roots lie in printing, photolithography has changed dramatically. Modern versions use shorter wavelengths, such as deep ultraviolet (DUV) and extreme ultraviolet (EUV), to create even smaller features. It is a demanding field that depends on extremely precise engineering and chemistry. Today, its use extends beyond semiconductors into microelectromechanical systems (MEMS), lab-on-a-chip devices, sensors, and other small fabricated structures. Without photolithography, the modern digital world would look very different.
