Imagine needing to make an exact copy of a drawing, but bigger or smaller. That's where a pantograph comes in. It is a clever mechanical link, usually made of four bars joined like a parallelogram, that lets you trace an image and create a scaled version on paper. The name comes from Greek roots meaning "all writing," and artists used this tool for centuries before photocopiers. You may also have seen the word in another setting: the folding metal frame on top of an electric train or tram is also called a pantograph. It uses a similar moving shape to keep steady contact with overhead power lines as the vehicle moves.

A pantograph is a mechanical linkage based on the geometry of a parallelogram, used to copy a flat figure or enlarge or reduce it to a chosen scale. Think of it as a classic analog scaling device: before digital tools, it was a standard way to make accurate copies of drawings, maps, and architectural designs. The device consists of four bars connected by pivots. As one end traces the original image, another end holds a pen or cutting tool that makes the scaled copy. By adjusting the positions of the arms on the pivot points, the user can control the exact amount of enlargement or reduction.

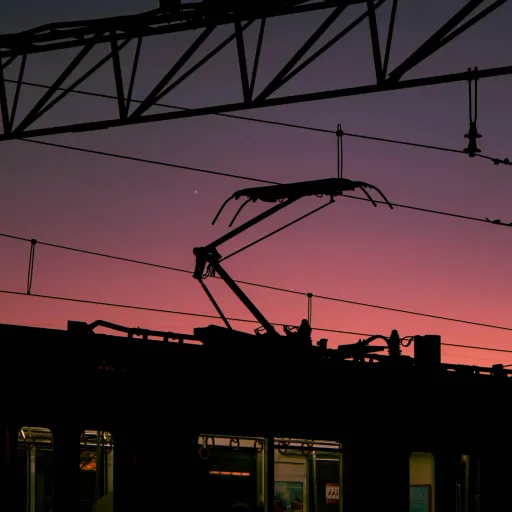

Historically, pantographs were indispensable in fields like cartography and engineering, allowing the rapid duplication of complex plans. However, the term has also come to describe several modern applications. In transportation, a pantograph is the apparatus mounted on the roof of an electric train, tram, or some buses to collect power from an overhead wire. Its scissors-like mechanism lets it compress and expand, helping it keep contact with the wire even as the vehicle moves or the wire height changes.

The principle is also found in industrial engraving, where a stylus follows a template to cut letters into metal, and even in textiles. In quilting, for example, a pantograph is a long printed design used as a guide for stitching a repeating pattern across a quilt. Whether it is carrying electricity to a train or scaling an artist's sketch, the pantograph remains a smart example of practical geometry at work.
